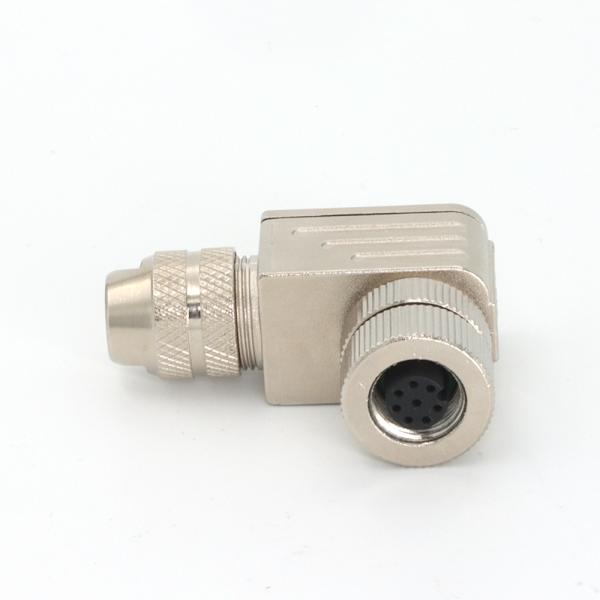

Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial

Name: Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial
Brand: KRONZ
Price: 1 USD

Wholesale Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial from china suppliers

Model Number : H1208FAV-0

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Brand Name : KRONZ

Certification : CE

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Description : Full Metal Connector

Color : Siliver

Standard : IEC 61076-2-101

IP rate : IP67

Endurance(shell) : >100 cycles

Insulation Resistance : ≥ 100MΩ

Contact resistance : ≤ 5mΩ

Connector type : Screw Locking

Contact Now

M12 Field Wirable Assembly Connector IP67 Female 8 Pin Metal Industrial Connector

Product Description

M12 connectors are used in wind turbines and solar power systems to connect sensors and control units, ensuring reliable operation in outdoor environments.

Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Zinc alloy, nickel-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

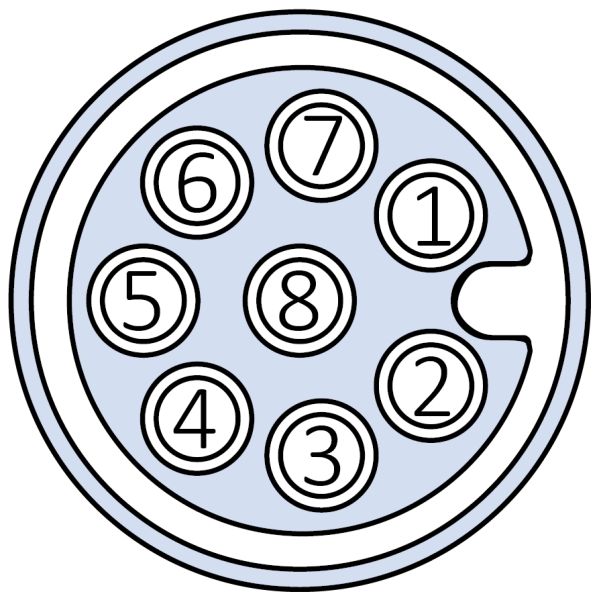

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	2A	30V	Angled	4-8mm	H1208FAV-0

Product Tags:

Metal M12 Connector 8 Pin Female

IP67 M12 Connector 8 Pin Female

Field Wireable Assembly M12 Connector

Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial Images
